Product Description

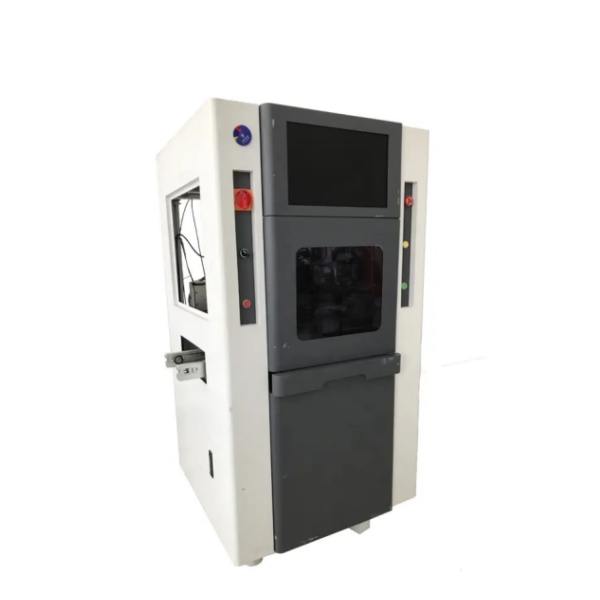

The laser soldering machine (customized) from Dayan Intelligence sets a new trend in non-contact solder ball jet soldering and three-dimensional soldering with its outstanding technical performance. This equipment is capable of precisely handling soldering tasks with minute spacing, achieving a minimum pad size of 0.15mm and a pad spacing of just 0.25mm, with a positioning accuracy as high as ±0.02mm. It features fast soldering speed, stable quality, low thermal stress, and no need for cleaning, providing an efficient and reliable solution for the field of precision soldering.
Product Characteristic
High-Precision Soldering: Laser solder ball welding technology achieves micron-level precision, making it ideal for scenarios requiring delicate and micro-scale welding.
Small Heat-Affected Zone: The focused nature of the laser limits the heat-affected zone to a very small area, minimizing thermal damage to other components or sensitive parts on the circuit board.
Fast Welding Speed: Pulsed laser enables rapid heating and melting, significantly reducing the welding cycle, with a single-point speed of 3 balls per second.
Welding Method: Efficient non-contact laser welding eliminates external influences such as static electricity and friction.
Welding Space: Capable of welding in extremely small spaces and performing three-dimensional welding; minimum pad size of 0.15 mm and minimum pad spacing of 0.25 mm.
Motion System: Utilizes industry-leading high-quality imported servo motors with adjustable three-axis positioning, combined with a high-precision CCD vision inspection system, achieving a positioning accuracy of 0.15 mm.
Structural System: Features an integrated marble gantry platform architecture, ensuring stability, no deformation, long working cycles, and excellent precision stability.
Consistent Solder Volume: Employs solder balls of fixed sizes to ensure consistency and repeatability in the welding process.
Yield Rate: Over 99.6%.
Maintenance: Equipped with a self-cleaning system, resulting in low maintenance costs.
Environmentally Friendly: The laser welding process does not require flux, meeting environmental protection standards.
Product Parameter
All customized
